Align Two Points in X / Align Two Points in Y

Allows you to align two points or more on the same horizontal or vertical axis.

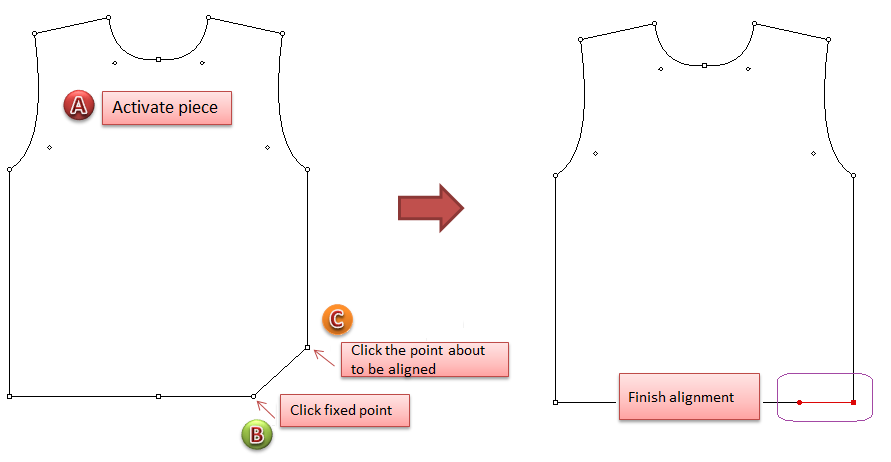

Align two points on the X axis

1. Activate the piece;

2. Select tool;

3. Click the fixed reference point;

4. Click the point to be aligned.

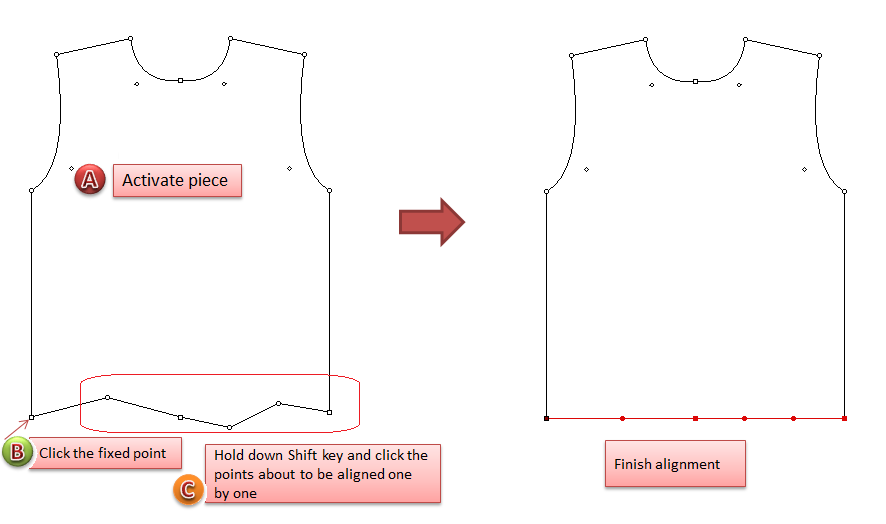

Align many points on the X axis

1. Activate the piece;

2. Select tool;

3. Click the fixed reference point, the pointer turns into a cross;

4. Hold down the Shift key, a smaller cross appears next to the larger one. Click points one by one to align them.

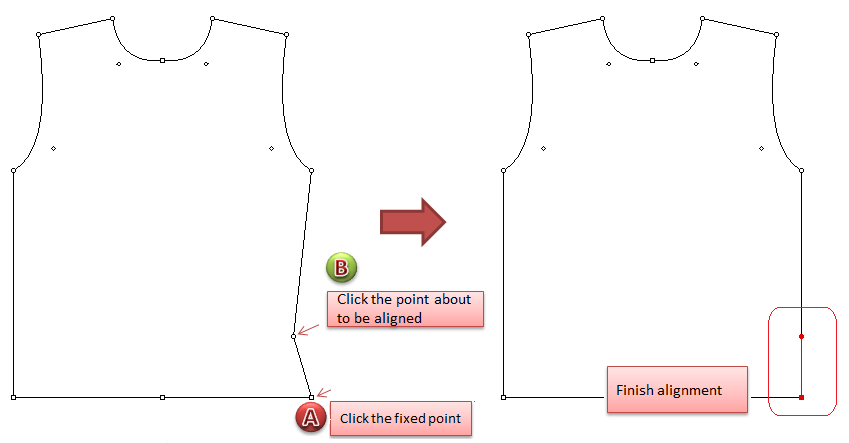

Align two points on the Y axis

1. Activate the piece;

2. Select tool;

3. Click the fixed reference point;

4. Click the point to be aligned.

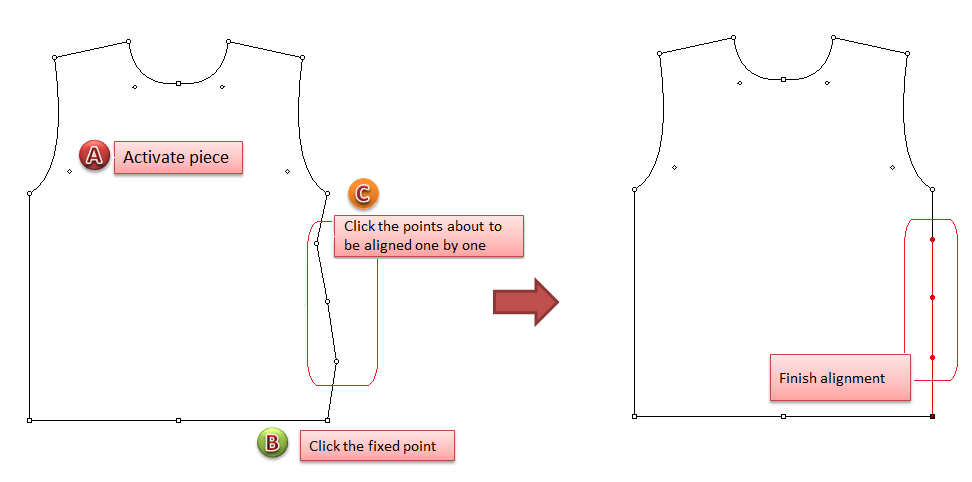

Align many points on the Y axis

1. Activate the piece;

2. Select tool;

3. Click the fixed reference point, the pointer turns into a cross;

4. Hold down the Shift key, a smaller cross appears next to the larger one. Click points one by one to align them.
