Align Points

Allow users to align all the points that are on the selected segment(s) according to two reference points.

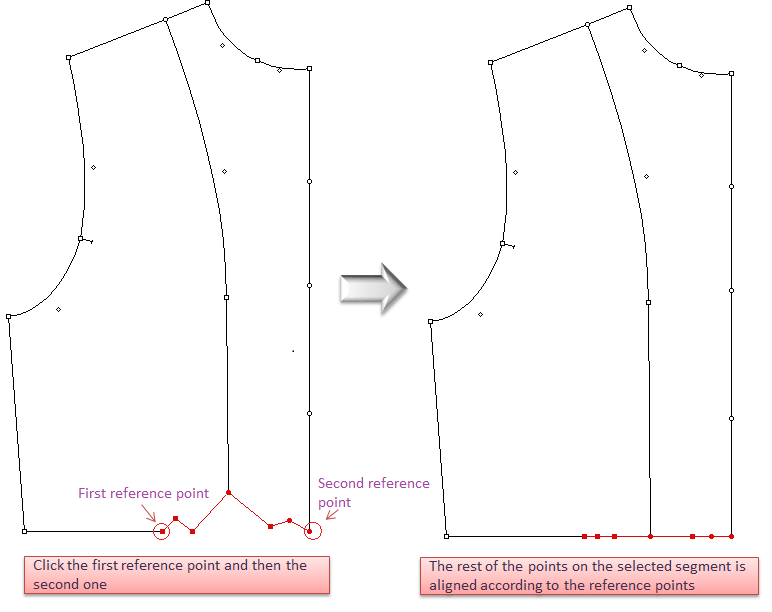

Align points by two clicks

1. Select the segment(s) the points you want to align are on;

2. Select tool;

3. Click the first reference point;

4. Click the second reference point.

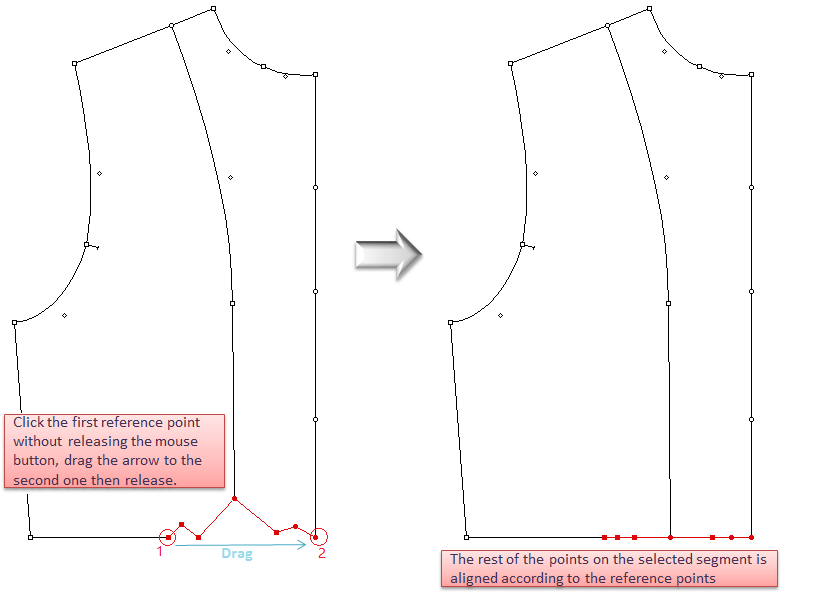

Align points by one click

1. Select the segment(s) the points you want to align are on;

2. Select tool;

3. Click the first reference point without releasing the mouse button, drag to the second reference point and release it.
