Intersection Points

Allows users to add points on selected segments that are aligned from a projection guideline.

Add points

1. Select the segment(s) where points are required;

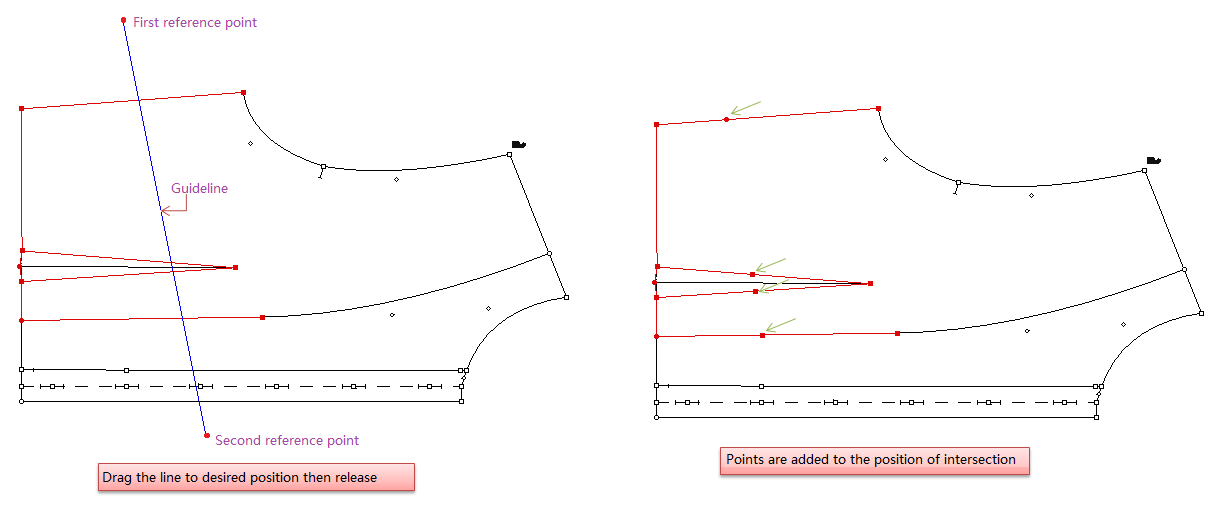

2. Select tool;

3. Click the desired location of the first reference point, then click the location of the second reference point without releasing the mouse button, a guideline appears;

4. Drag it to desired position. Points appear on all the selected segments intersecting the guideline.

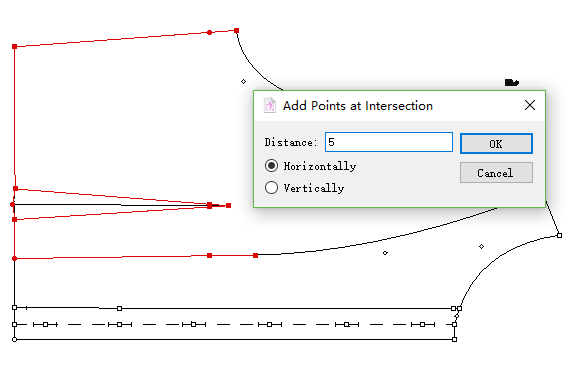

Enter value to add points

1. Select the segment(s) where points are desired;

2. Select tool;

3. Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click the desired location of the reference point to open the dialog box;

4. Enter value, click [OK].
