Point

Allow users to add point on the piece or any position of the working area.

Add point

1. Select tool;

2. Click the desired postion (on the piece or on the working area) to add new point.

Enter value to add point

1. Select tool;

2. Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click a reference point (with the coordinates 0, 0);

3. Enter desired value in the dialog box, click [OK].

   Note

   Content of dialog box:

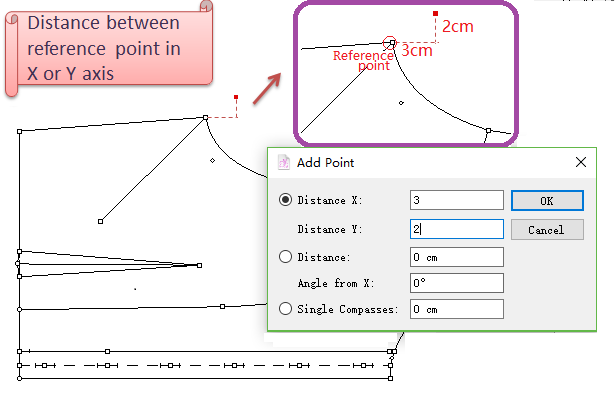

   X Distance: Enter the length where the point is desired according to the X axis from the origin click;

   Y Distance: Enter the length where the point is desired according to the Y axis from the origin click;

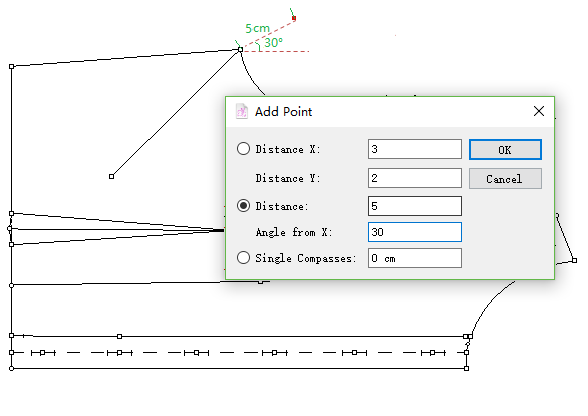

   Distance: Enter the length where the point is desired according to the specified distance from the origin click;

   Angle from X: Enter the angle where the point is desired according to an angle based on an X axis based on the reference point (the origin).





Single Compasses

New in V7.0

Taking a point as reference, users can add a new point on the desired segment with specific length. The distance between that two points is the specific value the user input in Single Compasses dialog box.

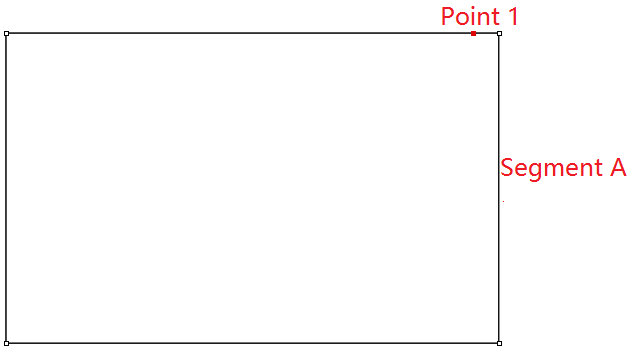

For example: now we are going to draw a segment intersects Segment A at the new point Point 2. And the length of the segment (between Point 1 and Point 2) is 15 cm.

How to do:

1. Select Point 1 and Segment A;

2. Select Add Point to Segment tool;

3. Hold down the Alt key (Windows) or Option key (Macintosh), the arrow turns into a cross, then click Point 1;

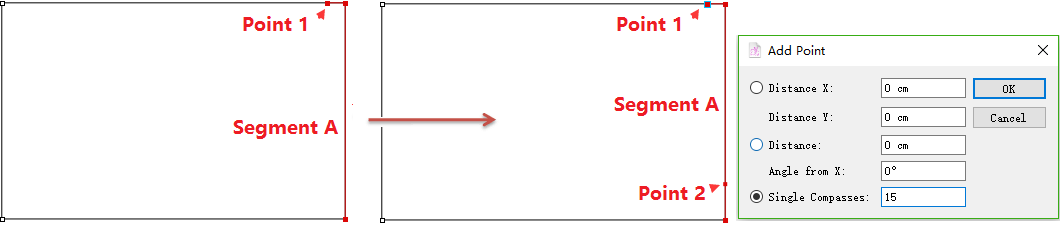

4. The dialog box appears, input the value (e.g. 15 cm) in Single Compasses, then click OK, and new point (Point 2) is created on Segment A;

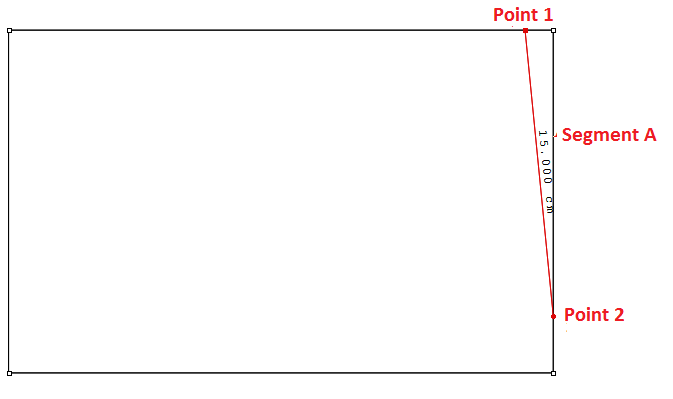

5. Connect Point 1 and Point 2 by using the Segment tool. The length of linking segment is 15cm.
