Ruffle

Allow users to create ruffle piece, or develop an exisiting piece into a ruffle.

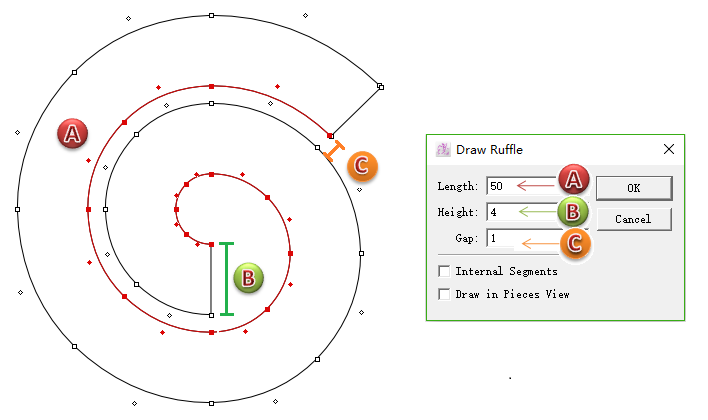

Draw piece of ruffle hem

1. Select Ruffle Tool;

2. Left-click on the desired location;

3. Dialog box appears, enter values into it, click [OK].

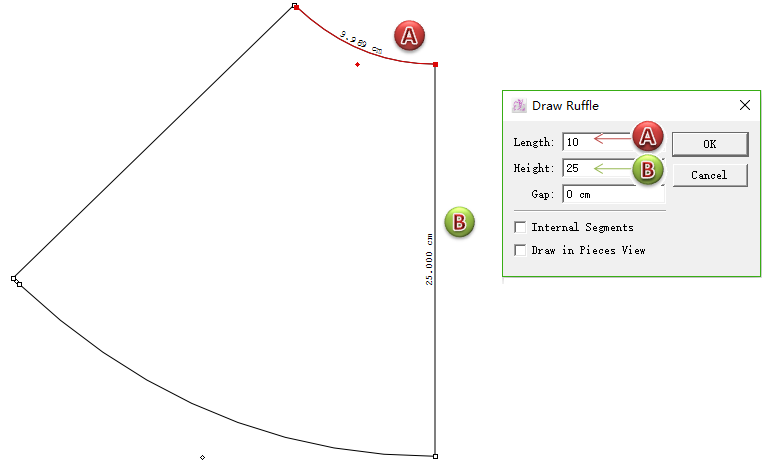

Draw piece of A-line skirt

Repeat the steps as above.

Note

Internal Segment : draw it as internal contour of the piece, each segment can be removed individually.

Draw in Piece View : draw it as a pattern piece directly.

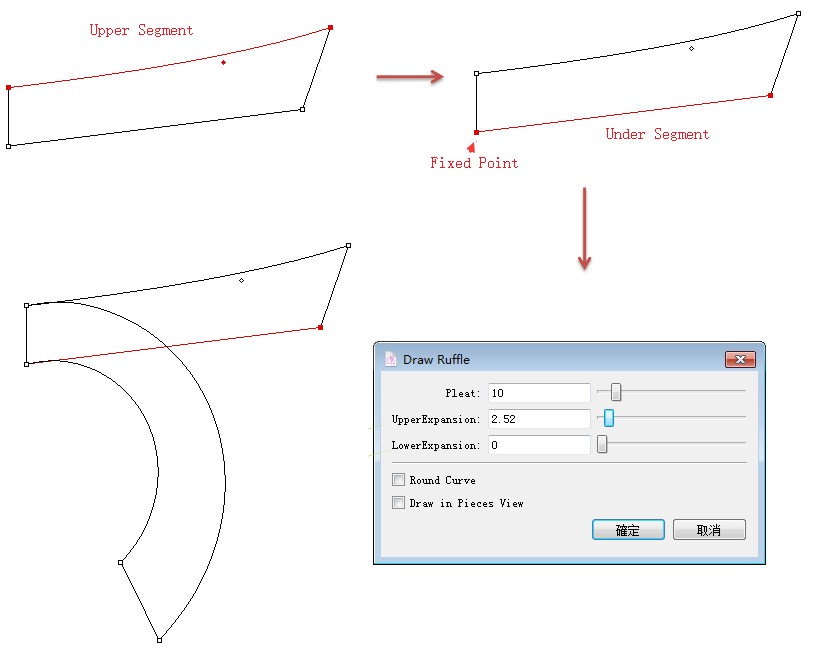

Develop an existing piece into a ruffle

New in V7.0:

1. Activate the piece and select the upper segment;

2. Select Ruffle tool;

3. Right-click anywhere you wish;

4. Hold down the Ctrl key (Windows) or Command key (Macintosh) and select the under segment;

5. Right-click anywhere you wish;

6. Left-click the fixed point, and input the values or drag the slider to modify the ruffle.



Note

It also previews the motion when the values are being changed.
