Rectangle

Allow users to to create a rectangle or square freehand or according to a precise value.

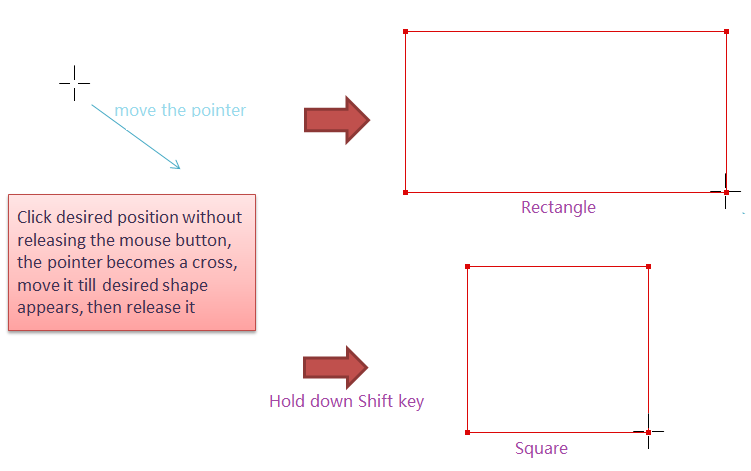

Draw rectangle/square by one clicking

1. Select tool;

2. Click on desired working area without releasing the mouse button, move it till a shape appears(hold down Shift to draw square);

3. Move to get desired shape then release the mouse button.

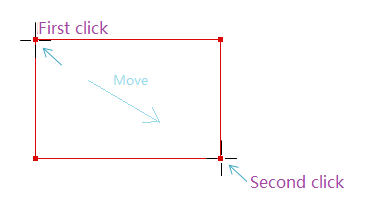

Draw rectangle/square by two clicking

1. Select tool;

2. First click on the desired working area (hold down Shift to draw square);

3. Move the arrow till desired shape appears, then click again to finish drawing the shape.

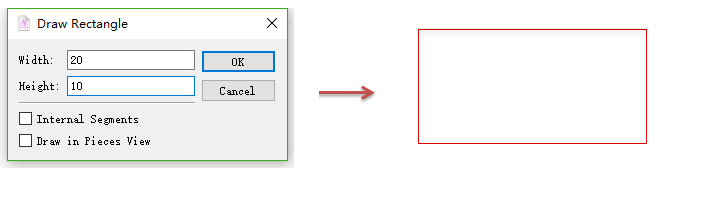

Enter values to draw rectangle/square

1. Select tool;

2. Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, and click on the desired working area;

3. Dialog box appears and enter desired values;

   Note

   New in V7.0: It previews the result.

4. Click [OK].
