Ellipse / Circle

Allow users to to create a circle freehand or according to a precise radius or diameter.

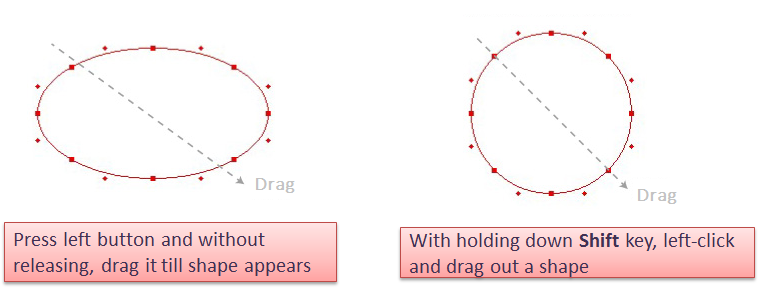

Draw circle/ellipse by freehand

1. select , left-click the cursor, do not release the button and then drag out a ellipse.

2. select , with holding down Shift key, left-click to drag out a circle.



Draw circle/ellipse by two clicking

1. Select tool;

2. First click on the desired working area, takes it as the central point of the shape (hold down Shift to draw circle);

3. Move the arrow till desired shape appears, then click again to finish drawing the shape.

Enter values to draw circle/ellipse

1. Select tool;

2. Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, and click on the desired working area;

3. Dialog box appears and enter desired values, click [OK];

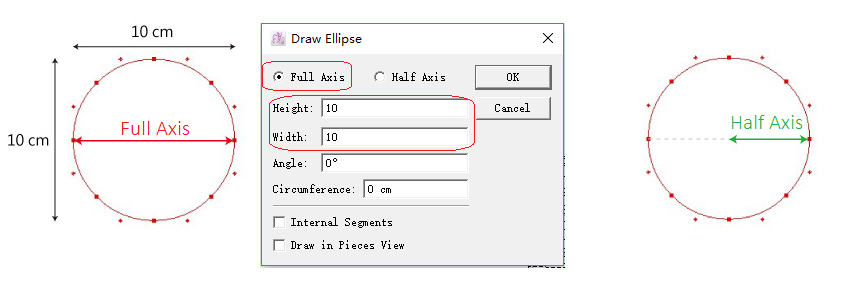

   For example, draw a circle with diameter 10cm:



   Note

   Internal Segment : draw the shape as internal segment of the piece which can be removed.

   Draw in Piece : draw the shape as a pattern piece.

Note

New in V7.0: It previews the result.
